Holders & distribution

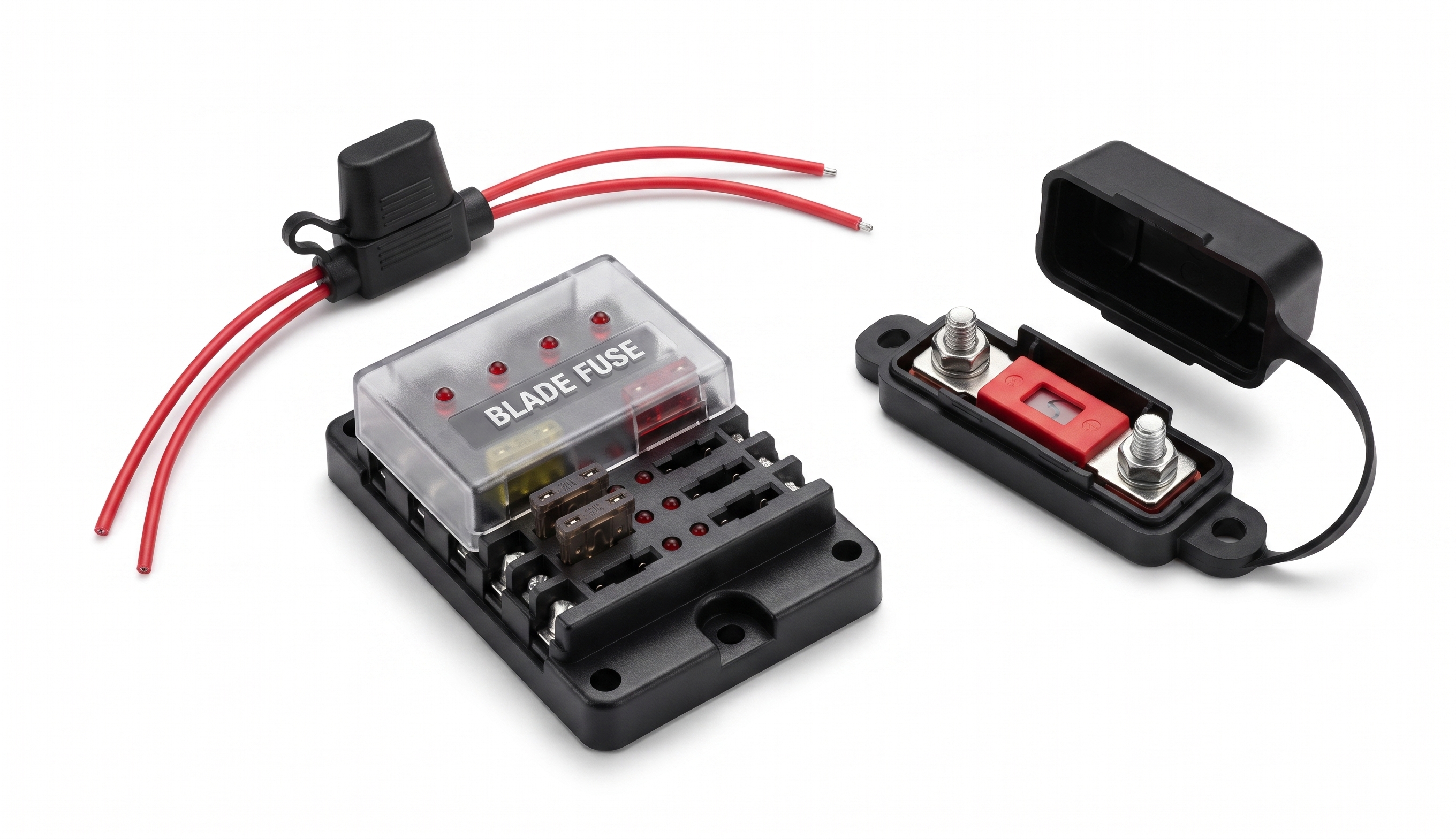

Fuse Holders & Blocks
Panel-mount, in-line, DC-rated and PCB/SMD fuse holders, plus multi-way blocks, carriers and sockets — each rated to carry the current without running hot.
- Every mounting type from one supplier
- Built to IEC 60127-6 and the UL 4248 series
- Sealed / IP-rated and DC-rated options
- Samples for qualification and second-sourcing
CEULRoHSREACH
Product range
A complete range from one supplier
Every line below is engineered, built and tested in our own factory — so you can source a complete, matched range from a single manufacturer, with one set of documents.
Panel Mount Fuse Holders
Screw-cap, bayonet and bolt-in holders for instruments, machinery and control gear.
Panel / chassis5×20 · 6×30Screw-cap / bayonet
View range

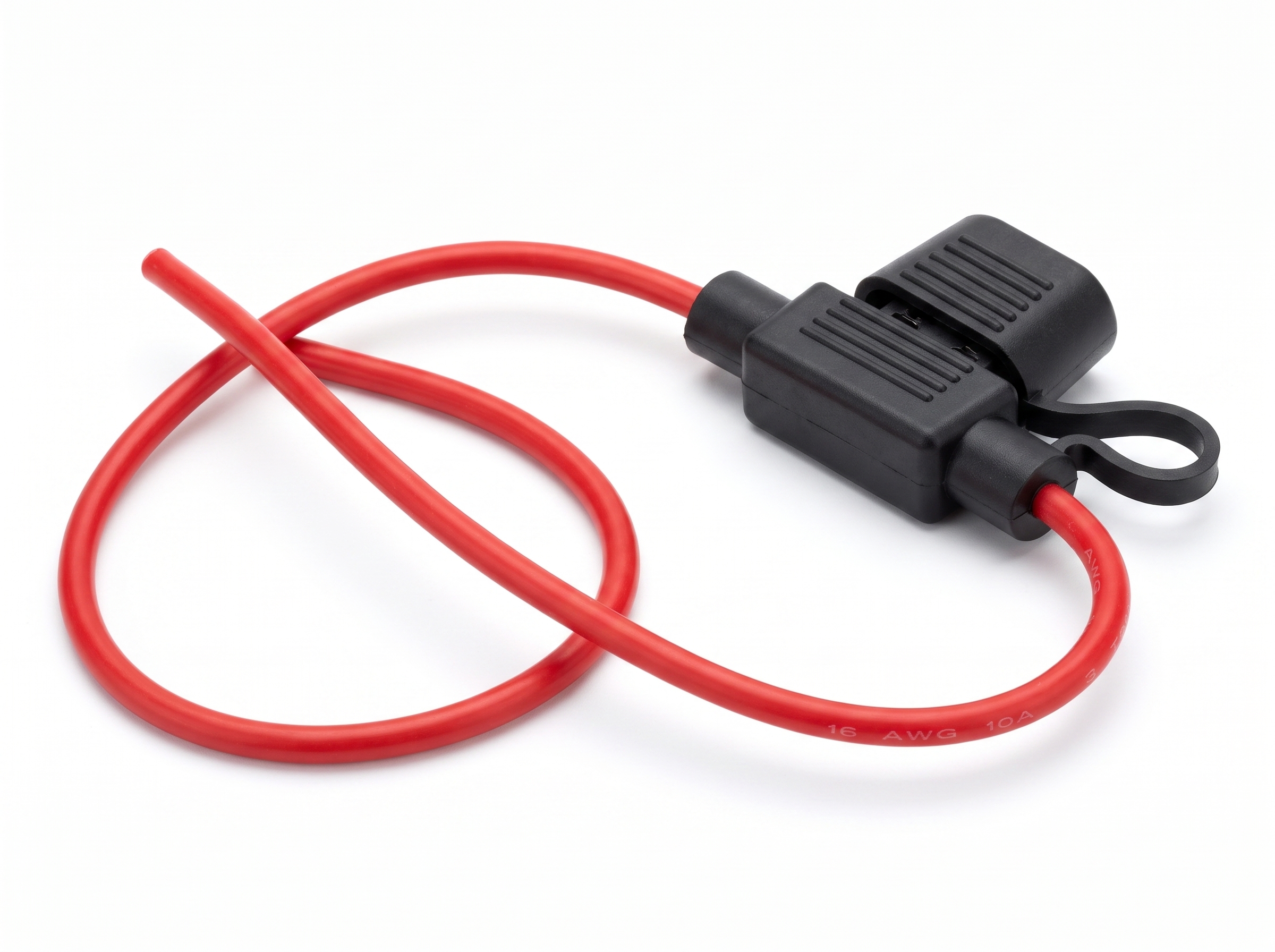

In-Line Fuse Holders
Wire-in-line holders with sealed, waterproof versions for harnesses and outdoor use.
In-lineBlade & glassWaterproof options
View range

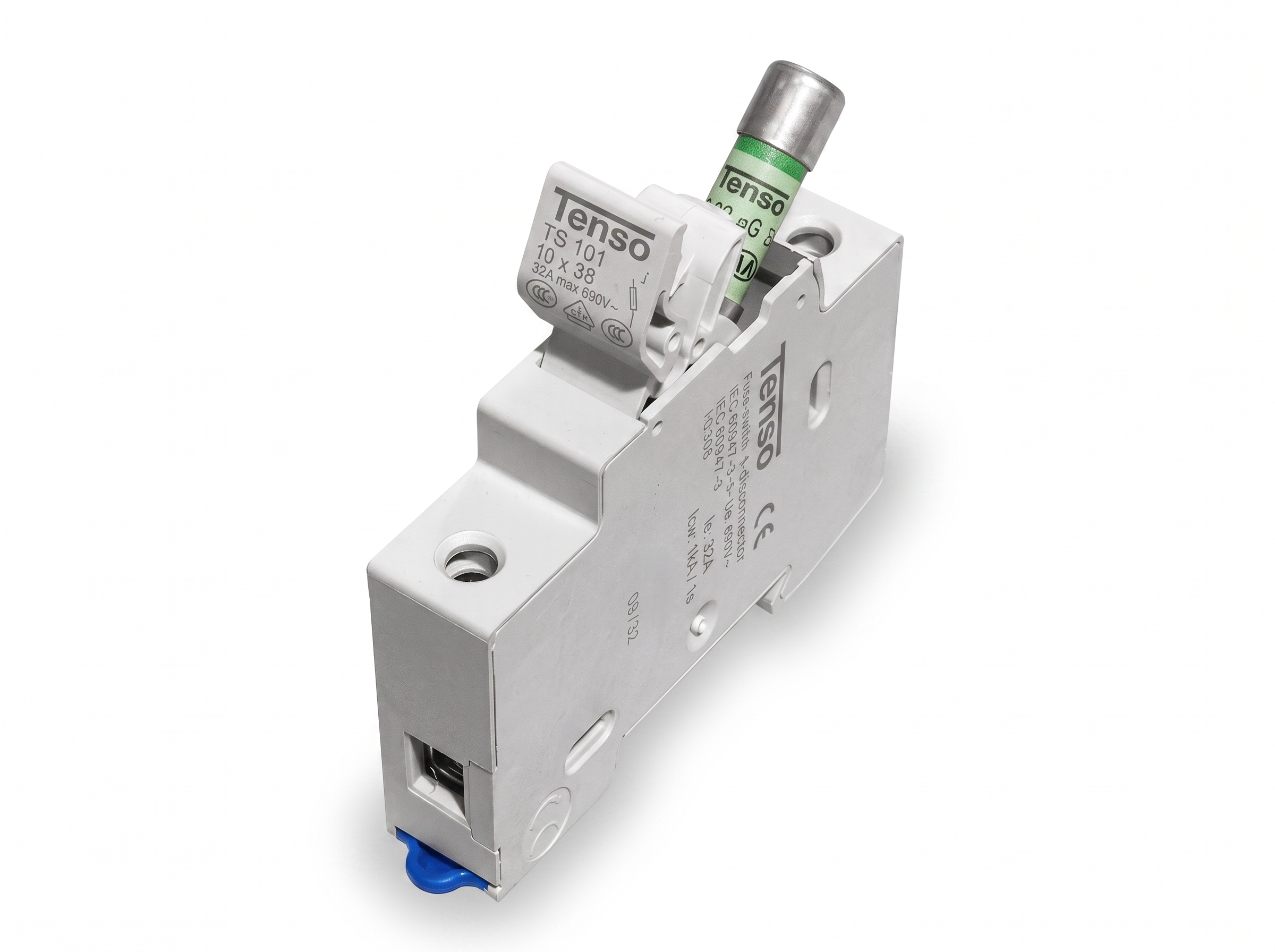

DC Fuse Holders
DC-rated holders for solar, battery and telecom circuits where AC-only parts won't do.
DC-ratedSolar / batteryDIN-rail options
View range

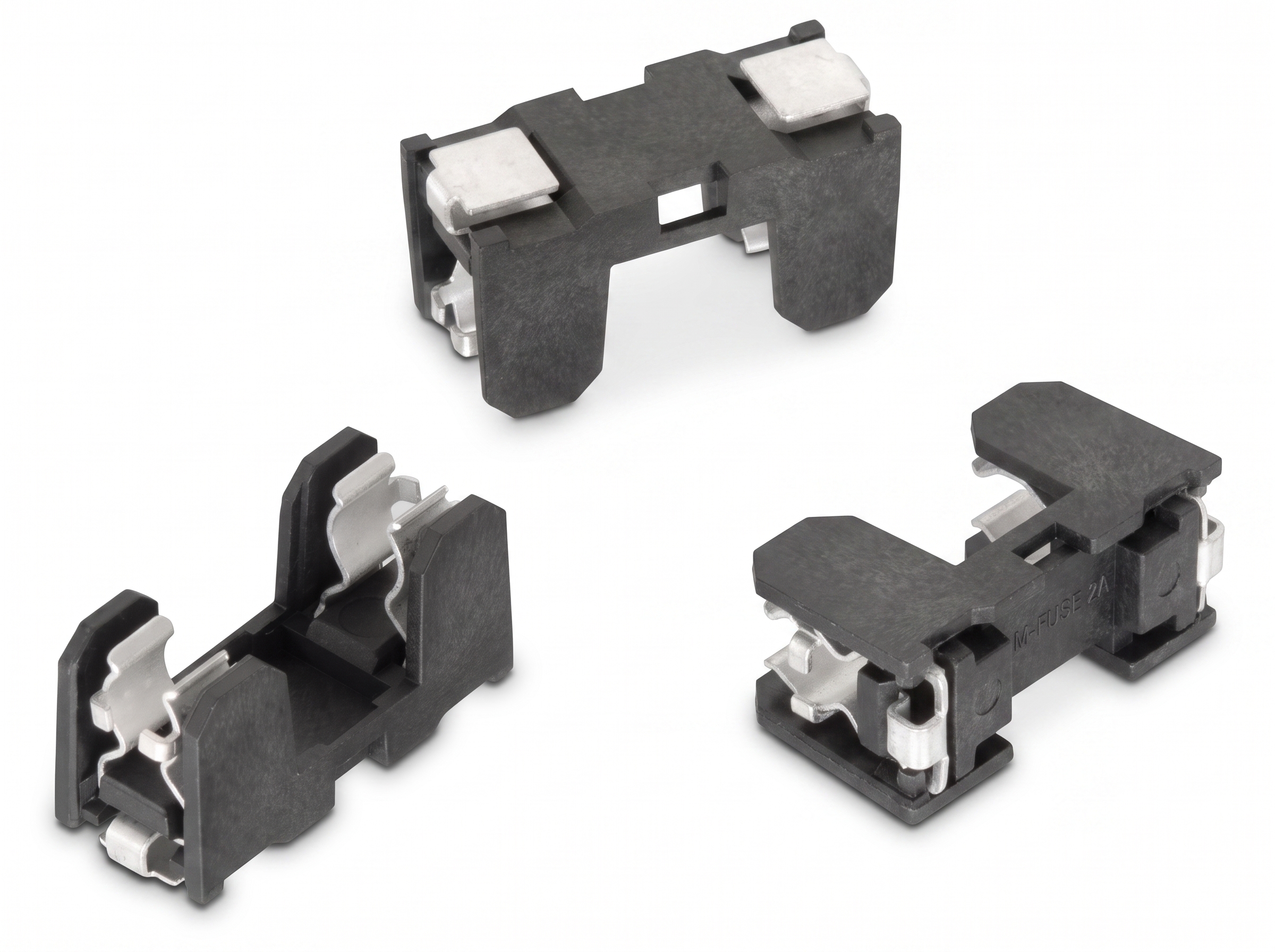

PCB / SMD Holders & Clips
Board-level holders and clips for a replaceable fuse rather than a soldered one.
Through-hole / SMDFuse clipsElectronics OEM
View rangeSpecifications & standards
Built and tested to standard
The headline ratings and the standards we build to. Full datasheets — with tolerances, time-current curves and dimensions — are available on request.
| Mounting | Panel · in-line · DC · PCB/SMD |
|---|---|
| Fuse formats | Blade · 5×20 · 6×30 · 10×38 |
| Standards | IEC 60127-6 · UL 4248 |
| Sealing | Open to IP67 (in-line) |
| Termination | Screw · spade · solder · PCB pin |
| Indication | Optional blown-fuse LED |
Standards & approvals
- IEC 60127-6 Holders for miniature cartridge fuse-links
- UL 4248 Fuseholders — series of part standards by type
- RoHS / REACH Restricted-substance compliance
A holder's current and voltage rating must always meet or exceed both the fuse and the circuit. Running a holder near its limit, or in a hot enclosure, is the most common cause of overheating — derate for ambient.
Read the fuse types guideA fuse holder looks like an afterthought until one runs hot. It is a current-carrying part in its own right, and the most common cause of a “fuse keeps blowing” or “holder keeps melting” complaint is a holder under-rated for the load or making poor contact — not the fuse itself. Tenso has manufactured the complete range of holders, blocks and clips since 2000, with the contact design and plating checked in-house so the holder carries its rated current without overheating.
Every mounting type, one supplier
Our range covers panel-mount (screw-cap, bayonet, bolt-in) for instruments and control gear; in-line holders — including sealed, waterproof versions — for harnesses and outdoor use; DC-rated holders for solar, battery and telecom circuits; and PCB/SMD holders and clips for board-level protection. Multi-way fuse blocks, carriers and sockets group and distribute several protected circuits behind one assembly. Because we make them all, you get one supplier, one set of documents, and holders designed to fit the fuses you buy from us.
Why a holder overheats — and how we prevent it
In order of likelihood: the holder or fuse is under-rated for the continuous load; contact resistance is high (a wrong-size fuse, corrosion, or a loose terminal); the ambient is hotter than the rating assumes; or there is a genuine circuit fault. A hotter-running holder is not fixed by fitting a bigger fuse — that only moves the failure. Our holders are rated and inspected so that, sized correctly for your circuit and ambient, they carry the current cool.
DC needs DC-rated parts
A DC arc has no natural current zero to help it extinguish, so a holder rated only for AC may not safely interrupt a DC fault. For any DC circuit — solar, battery or telecom — specify DC-rated holders for the system’s voltage class.
Why source from Tenso
You're buying from the factory
No trading-company markup and no telephone game with a sub-supplier — design, tooling, production and QC all sit under one roof.
We make the part
Own tooling, moulding, stamping and assembly under one roof — factory pricing and quality control, not a reseller's.
Built not to run hot
Contact design and plating are checked in-house so the holder carries its rated current without high contact resistance.
The complete range
Panel, in-line, DC and PCB/SMD holders, plus multi-way blocks, carriers and sockets — one supplier, one set of documents.
Custom & private label
Custom configurations, colours, packaging and your branding at volume, straight from our own moulds.
Applications
Where these parts go to work
Instruments & control gear
Panel and chassis mounting
Automotive & marine
In-line, waterproof holders
Solar & battery DC
DC-rated holders
See solutionsElectronics OEM
PCB / SMD holders & clips
Certified
Compliance you can hand to your QA team
Built to the standards your market and your auditors expect — with certificates and declarations available on request.
Conformity for the European market across applicable product lines.
UL recognition/listing on qualifying holder ranges.
Restricted-substance compliance for electronics supply chains.
Substance-of-concern declarations available on request.
Cross-reference
Switching from another brand?
Replacing an existing holder? Send the reference and we'll confirm a drop-in Tenso equivalent.
| Type | Format | Tenso equivalent | Rating |
|---|---|---|---|
| Panel-mount, screw-cap | 5×20 mm | TH-PM series | ≤ 10 A · 250 V |
| In-line, waterproof | Blade | TH-IL series | ≤ 30 A · 32 V |
| DIN-rail DC holder | 10×38 mm | TH-DC series | ≤ 32 A · 1000 V DC |
How to order
From enquiry to delivery
- 01
Enquiry
Tell us the fuse format, rating, mounting and target approval. We confirm fit — usually same day.
- 02
Samples
Approve samples for qualification and to verify fit before a run.
- 03
Quote & terms
Pricing, MOQ, lead time and Incoterms in one clear quote.
- 04
Production
Moulding, stamping and assembly run in-house to your approved sample.
- 05
QC & shipping
Batch-inspected, then packed and shipped with documentation to your port.
Request a quote
Tell us what you need protected.
Send a part number, a drawing, or a description of the circuit. We confirm fit and pricing within one business day.
- Email sales@tensofuse.com
- WhatsApp Chat with sales
FAQ
Holders & distribution — questions buyers ask
Can I use an AC fuse holder on a DC circuit?
Not as a rule. DC needs a holder and fuse rated for DC; an AC-only part may not safely interrupt a DC fault. Check the DC voltage rating on the datasheet and see our DC fuse holders.
Why is my fuse holder getting hot?
Usually the holder or fuse is under-rated for the continuous load, or contact resistance is high (wrong-size fuse, corrosion, a loose terminal). Re-rate and check the contacts before fitting a larger fuse.
What size holder do I need for a 5×20 mm fuse?
A holder built for the 5×20 mm cartridge format, rated at or above your circuit's current and voltage. We make panel, in-line and PCB versions for that size.
Single holder or a fuse block?
Use a single holder for one circuit; use a multi-way block to group and distribute several protected circuits behind one assembly.
Do I need a UL-listed holder?
If the finished product ships to North America, usually yes. For Europe you'll need CE; internationally, IEC. Specify the approval for your market early.
